PEAK DESIGN Bolt Pack - Replacement Capture Clip Mounting Bolts

Bolt Pack

Black

₱990.00

Bolt Pack

Peak Design

Bolt Pack

₱990.00

Shipping calculated at checkout.

1 left

Bolt Pack contains 2 replacement sets of clamping bolts for Capture: one pair of thumb-drive bolts which clamp to any strap up to 1.5 cm (0.6″) thick and one pair of hex-drive bolts which clamp to any strap up to 1.6 cm (0.7″) thick.

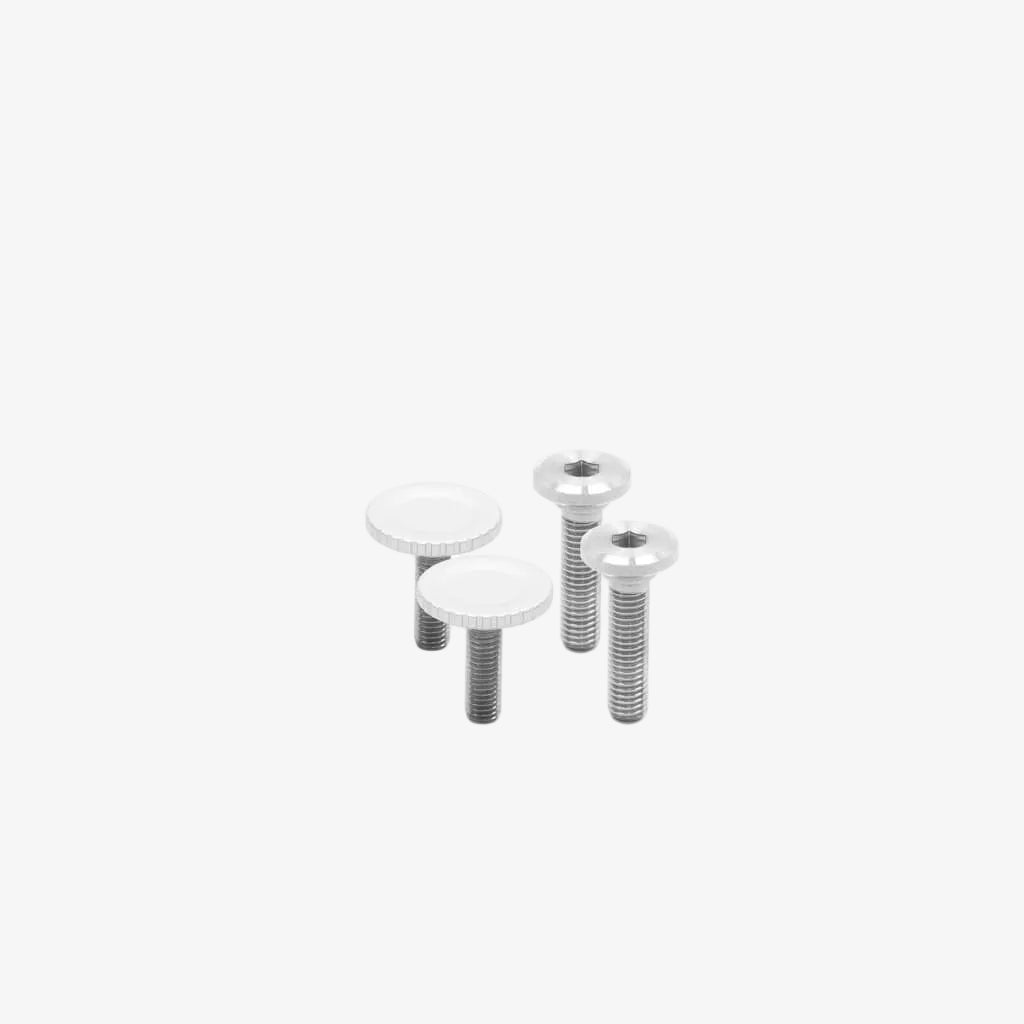

Photo shows both black and silver set of bolts. But each pack comes in either black or silver color.

Thumbscrew Length: 2 cm (0.8")

Thumbscrew Head Diameter: 1.8 cm (0.7")

Hex-Head Bolt Length: 2.2 cm (0.88")

Hex-Head Bolt Head Diameter: 1.15 cm (0.45")

Shaft Diameter (Both types): 0.5 cm (0.2"), M5 (31.8) TPI

Weight (Single Bolt): 4 g (0.1 oz)

Max Thickness (Thumbscrews): 1.6 cm (0.63")

Max Thickness (Hex-Head): 2.2 cm (0.87")

Dual Bolt Options: Each pack includes two pairs of different bolt styles: Thumbscrews for tool-less adjustments and Hex-drive bolts for more permanent, secure, or low-profile installations.
Varying Lengths: Specifically sized to handle a wide range of backpack straps or belts.

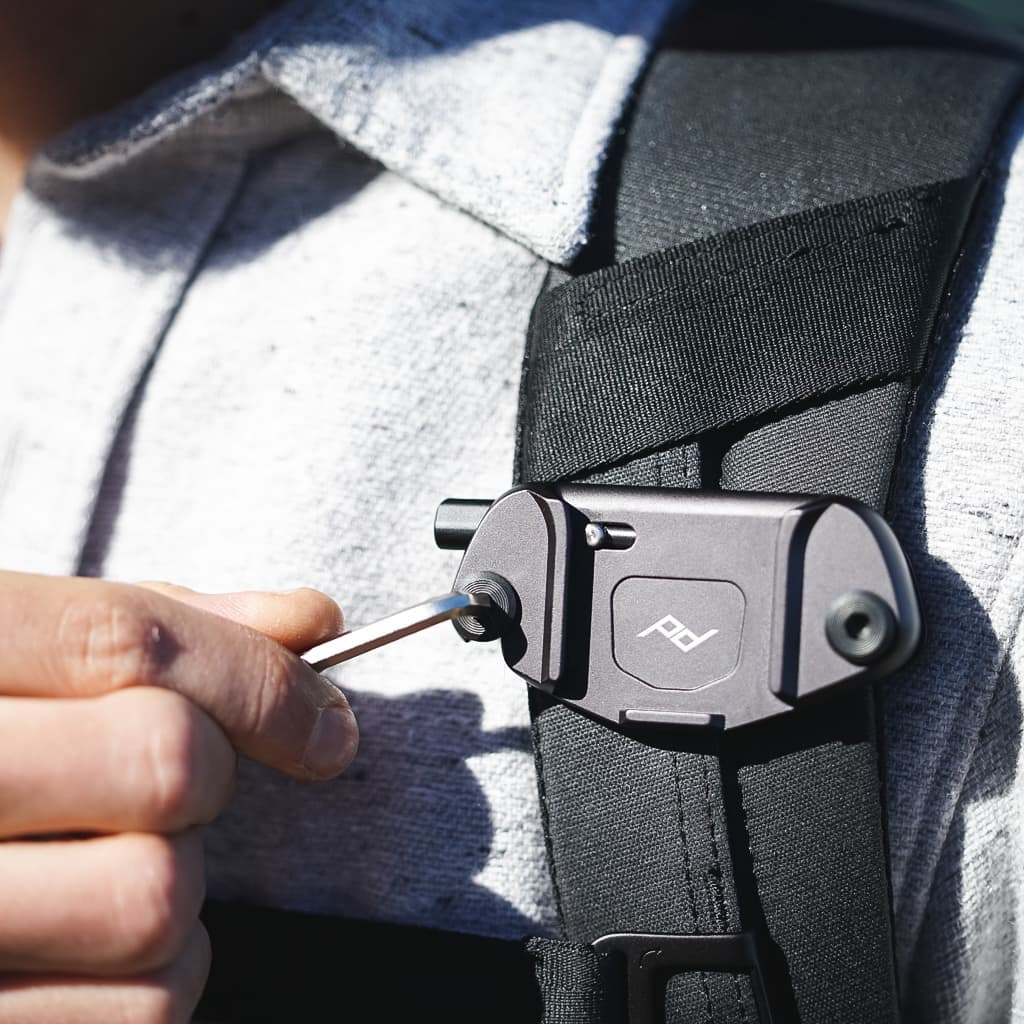

Tool-Less Attachment: The thumb-driven bolts allow you to easily add or remove the Capture Clip by hand.
Permanent Security: Hex-head bolts are better suited for permanent installation on a single bag, offering a sleeker look and higher security against casual theft.
Corrosion Resistant: Built to withstand outdoor elements and heavy-duty use.
V3/V2 Compatibility: Fully compatible with Capture v3 and v2 models (not compatible with the legacy v1).

Bolt Head: Machined and anodized 6061-T6 aluminum.
Shaft: High-strength stainless steel.
Finish: Available in Black or Silver to match your Capture Clip.

2x Peak Design Clamping Bolt Set

Bolt Pack
